Blesta

The Calagopus Blesta module is a server provisioning module for Blesta. It provisions and manages Calagopus servers from Blesta as part of your billing workflow, with support for nests/eggs, node- or location-based deployment, egg variables, and custom (extension-added) feature limits.

INFO

This module is based on the official Blesta Pterodactyl module, adapted for the Calagopus panel API and its additional features.

DANGER

This module authenticates with an admin API key, which grants full administrative access to your panel - creating users and servers, reading every resource, and more. Treat it like a root password: never share it, and rotate it immediately if it is ever exposed.

What it does

The module maps Blesta's service lifecycle onto the Calagopus admin API:

Blesta action	Effect on the panel
Add	Finds or creates a panel user for the client, then provisions a server (on a specific node, or auto-deployed across locations).
Suspend / Unsuspend	Toggles the server's suspended state.
Edit / Change package	Updates the server's resource and feature limits, name, and egg variables to match the package configuration and the service's configurable options.
Cancel	Deletes the server from the panel.

Clients are matched to panel users by their Blesta client ID (stored as the user's external_id), so each client reuses the same panel account across all of their services. If a matching email or username already exists, the module links to it instead of creating a duplicate.

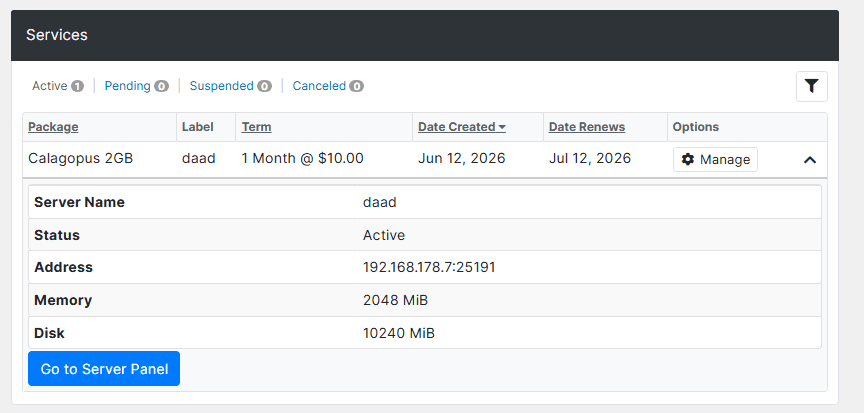

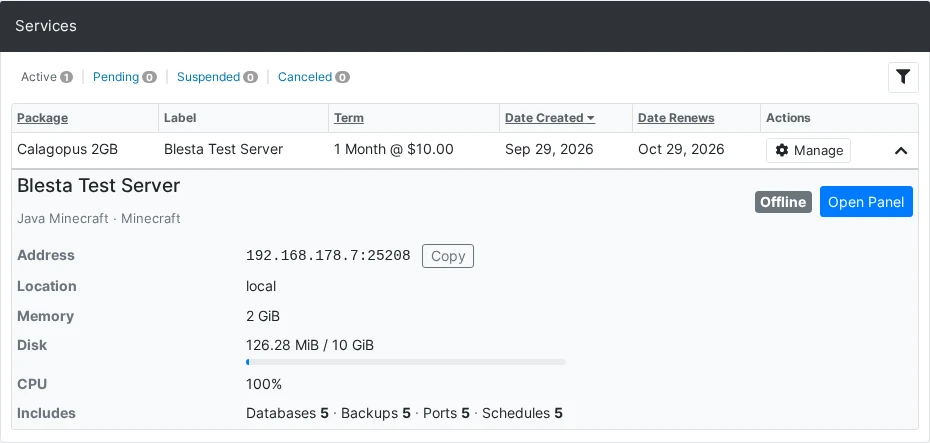

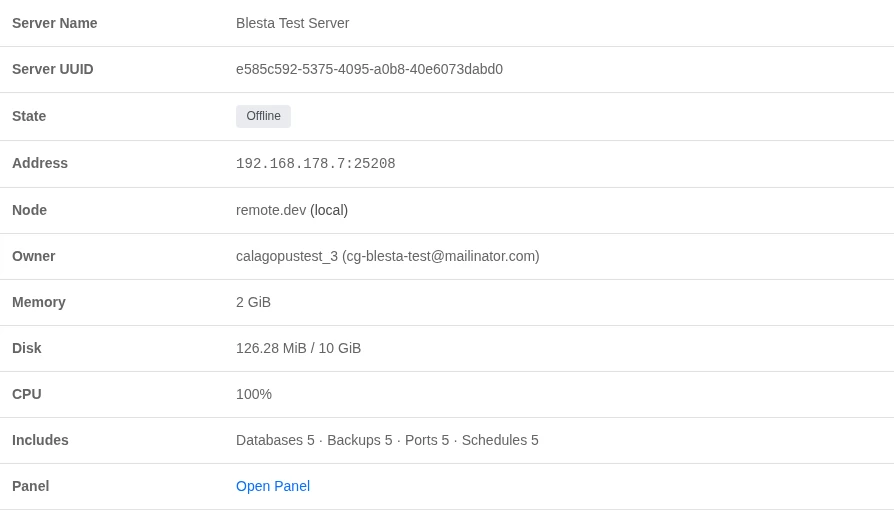

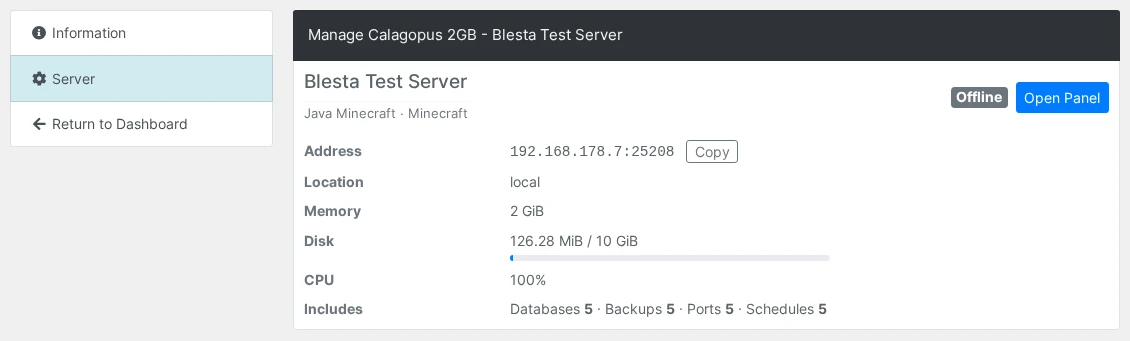

The client service page shows a server summary (name, status, address, memory, disk) with an Open in Panel button, and the admin service tab surfaces the same details.

Requirements

• A running Blesta installation.
• A running Calagopus panel with at least one node, location, nest, and egg configured.
• An admin API key from your Calagopus panel.

Installation

1. Upload the contents of the module repository into your Blesta installation:

   /path/to/blesta/components/modules/calagopus/

2. In Blesta, go to Settings → Company → Modules → Available, find Calagopus, and click Install.

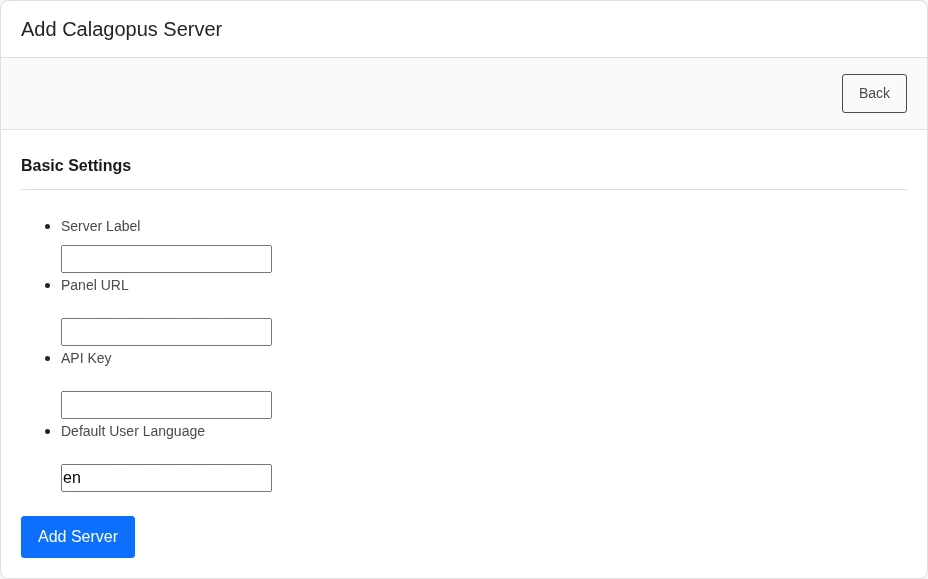

3. Click Manage on the Calagopus module, then Add Server and configure:

   Field	Description
   Server Label	A friendly name for this panel connection.
   Panel URL	Your panel URL, e.g. https://panel.example.com.
   API Key	An admin API key for your Calagopus panel.
   Default User Language	Two-letter language code for newly created users, e.g. en.

   Saving validates the connection against the panel.

Configuring a package

Create a Package and select the Calagopus module. The package configuration defines what every server provisioned from it looks like.

INFO

The Nest, Egg, Node, and Location fields are populated live from your panel through the API key on the server, so you can pick them from dropdowns. Changing the nest or egg refreshes the dependent options and the egg variable fields.

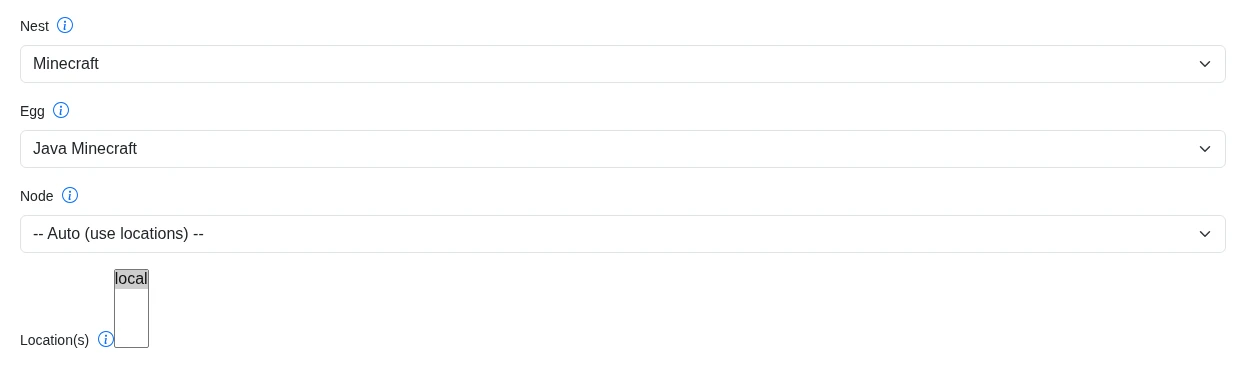

Deployment target

You can deploy in one of two ways:

• Specific node - pick a Node, and the module provisions onto the first available allocation on that node.
• Auto deploy - leave the node set to Auto and select one or more Locations. Calagopus picks a node and allocation automatically.

At least one of a node or one or more locations must be set, or the package will not save.

Resources and limits

Field	Notes
Memory / Swap / Disk	In MiB. Set swap to -1 for unlimited or 0 to disable.
CPU Limit	Percentage; 100 = one thread, 0 = unlimited.
Memory Overhead	Hidden memory added on top of the container's limit.
IO Weight	10–1000; leave blank for the default.
Allocations / Databases / Backups / Schedules	Standard feature limits.
Custom Feature Limits	Extension-added limits, as key:value pairs, e.g. plugins:5,worlds:3.

Egg and advanced options

Field	Notes
Docker Image	Override the egg default. Blank uses the egg's default image.
Startup Command	Override the egg default startup command.
Server Name Prefix	Used when the Server Name field on the order form is left blank; servers are then named <prefix><client id>. Blank defaults to Server-.
Pinned CPUs	Comma-separated core IDs, e.g. 0,1,2. Blank disables pinning.
Backup Configuration UUID	Optional backup configuration to assign to the server.
Skip Installer	Skips the egg's installation script.
Start on Completion	Starts the server automatically once installation finishes.
Hugepages / KVM Passthrough	Mount /dev/hugepages / allow /dev/kvm inside the container.

Egg variables

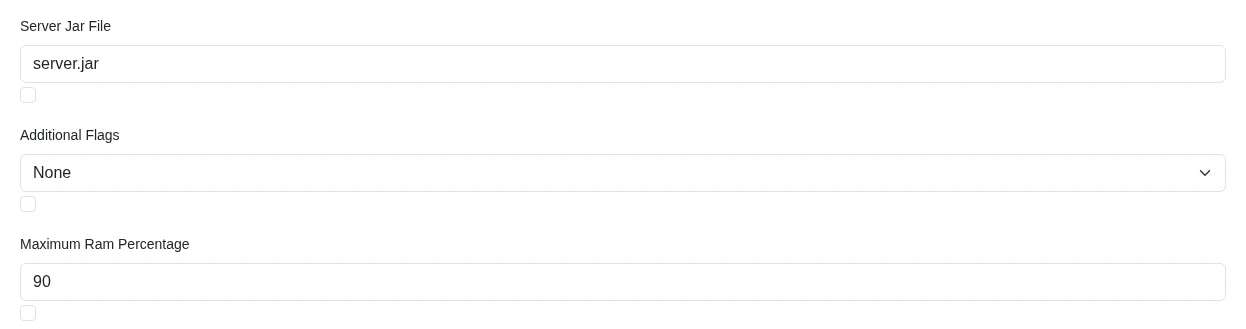

The package form renders a field for each of the egg's environment variables, validated against the egg's own rules. Each variable has a (display) checkbox - tick it to expose that variable to the client during checkout, letting them set its value themselves; leave it unticked to keep the value fixed by the package.

Overriding settings with configurable options

Blesta configurable options (Packages → Configurable Options) attached to the package override the matching package field whenever a service is added or edited. The option's name must equal the package field key exactly, in lowercase. Options with any other name are ignored.

Option name	Overrides	Value
memory, swap, disk	Memory / Swap / Disk	MiB
cpu	CPU Limit	Percentage, 100 = one thread
memory_overhead	Memory Overhead	MiB
io_weight	IO Weight	10–1000
allocations_limit, database_limit, backup_limit, schedule_limit	Feature limits	Count
docker_image	Docker Image	Image reference
startup_command	Startup Command	Command string
nest_uuid, egg_uuid, node_uuid	Nest, Egg, Node	UUIDs from your panel

Locations, custom feature limits, the server name prefix, pinned CPUs, the backup configuration, and the checkbox settings always come from the package.

For example, a configurable option named memory with the choices 2048, 4096, and 8192 lets a client pick their RAM tier at checkout, with the package's Memory field acting as the default when the option is not on the service.

Egg variable precedence

Each egg variable is resolved from the first of these that is set:

1. A configurable option named after the environment variable in lowercase, e.g. minecraft_version for MINECRAFT_VERSION.
2. The variable's service field on the order form, which clients only see when the variable's (display) checkbox is ticked on the package.
3. The value stored on the package.
4. The egg's default value.

Server name

The Server Name service field on the order form sets the server's name for both clients and staff. When it is left blank, the module falls back to the package's Server Name Prefix followed by the client ID.

What applies on edit

Editing a service or changing its package, with Use module enabled, re-reads the package fields and the service's options, then updates the server's resource limits, feature limits, pinned CPUs, hugepages and KVM passthrough, Docker image, and egg variables. A new Server Name value renames the server. The deployment target, startup command, and the install and start flags are only used when the server is first created.

Troubleshooting

Saving the server fails with a connection error

The API key is missing, malformed, or lacks admin access, or the Panel URL is incorrect. Confirm the Panel URL points at your panel (HTTPS is assumed if you omit the protocol) and re-enter a valid admin API key.

"No available allocations on the selected node"

The chosen node has no free allocations. Add allocations to the node, or switch the package to auto-deploy across locations.

The package will not save

Either the Nest or Egg is unset, or neither a node nor any locations were selected. All selections must come from the same panel the server is configured against.

Clients get a duplicate panel account

The module matches existing users by email and username. If a client registered on the panel separately with a different email than the one in Blesta, link the accounts by setting that panel user's external_id to the Blesta client ID.
