Firewall

The Firewall page controls who is allowed to reach this server's allocations. It lives under Network as a second tab, at /server/<id>/network/firewall, and needs the firewall.read permission to view and firewall.update to change.

With no rules configured, the page tells you as much: "Every connection to this server's allocations is allowed. Add a rule to start restricting who can reach it." Nothing is filtered until you add the first rule.

How Rules Are Evaluated

Rules are checked from top to bottom, and the first one that matches decides. That makes the order they sit in as important as the rules themselves; drag a rule by its grip handle to move it.

Anything that matches no rule at all is allowed. The page warns about this:

Traffic that matches none of these rules is allowed. Add a deny rule at the bottom that matches everything to turn this into a default deny firewall.

The Deny Everything Else button next to that warning appends a deny rule with no protocols, no sources and no ports, so it matches everything the rules above it didn't. Put your allow rules above it and the server is closed by default.

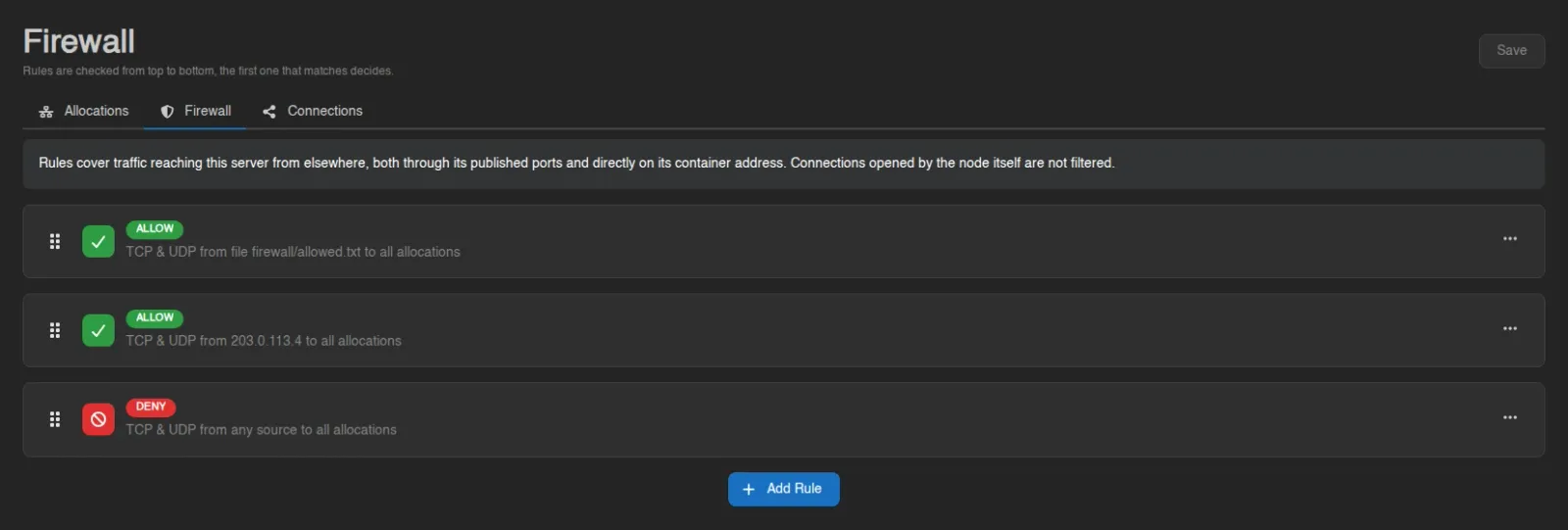

The ruleset above does exactly that: one rule allowing whatever a source file lists, one allowing a single address, and a catch-all deny beneath them.

Rule Fields

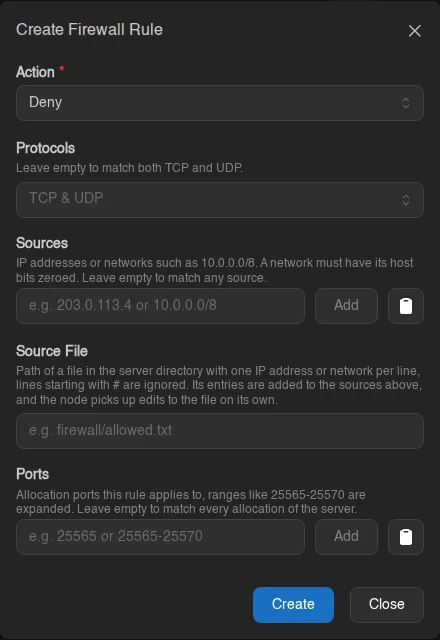

Add Rule opens a modal with five fields. An empty field means "match everything", so a rule with nothing filled in matches all traffic.

Field	What it does
Action	Allow or Deny the traffic this rule matches.
Protocols	TCP, UDP, or both. Leave empty to match both.
Sources	IP addresses or networks such as 10.0.0.0/8. A network must have its host bits zeroed, so 10.1.0.0/8 is rejected while 10.0.0.0/8 is fine. Leave empty to match any source.
Source File	Path of a file in the server directory, such as firewall/allowed.txt, whose entries are added to the sources above. See Source Files.
Ports	Allocation ports the rule applies to. Ranges like 25565-25570 are expanded into individual ports. Leave empty to match every allocation of the server.

Each rule card summarizes itself in the form protocols from sources to ports, falling back to "TCP & UDP", "any source" and "all allocations" for the empty cases. A source file shows up in that summary as file firewall/allowed.txt. Right-click a rule to edit, or use its card menu to remove it.

Source Files

A rule can take its sources from a text file inside the server directory instead of the modal, one IP address or network per line. Blank lines are skipped and everything after a # is a comment, so a file may look like this:

# staff
203.0.113.4
10.0.0.0/8  # office
2001:db8::/32

The file's entries are unioned with the rule's inline sources, so a rule with a file and no inline sources matches only what the file lists. A rule with a source file is never a catch-all, even with everything else left empty.

The node reads the file itself. Edit it any way you like, including from the game server, and the node picks the change up within a few seconds. Lines that do not parse are skipped, and the server console reports how many entries were loaded each time the file changes. When the file is missing or cannot be read, the rule keeps the entries it last loaded and the console says so. A file with no valid entries at all does clear the list.

The path is relative to the server directory and cannot leave it. The panel never reads the file, so the same rule on two servers uses each server's own copy. To share a list, copy the file to the other servers.

INFO

Each node caps the size of a source file. By default a file may hold 10000 entries and 1 MiB, set through docker.firewall.source_file_max_entries and docker.firewall.source_file_max_bytes in the Wings configuration. A file over either cap is not loaded at all and the previous entries stay in place.

Saving

Nothing you do on this page reaches the server until you press Save. Adding, editing, removing and reordering only change the pending list. An alert appears while you have unsaved work ("You have unsaved changes. Nothing is applied until you save."), and navigating away asks for confirmation before discarding it.

Warnings You May See

On top of the default-allow notice above, the page raises these:

Alert	Meaning
Not enforced	"This node will not enforce firewall rules. Rules are saved but have no effect, and this server may refuse to start while any are configured." The node either runs Wings rootless or has its firewall backend disabled. Don't leave rules configured on a node like that.
Shadowed rule	"Rule N can never match, an earlier rule already covers everything it does." Harmless, but that rule is doing nothing; reorder or remove it.
Unallocated ports	The ruleset names ports that aren't allocated to this server. The node ignores them until matching allocations exist.
Limitations	"Rules cover traffic reaching this server from elsewhere, both through its published ports and directly on its container address. Connections opened by the node itself are not filtered." Traffic arriving over a private connection is not filtered either; that connection is its own access grant.

INFO

How many rules a server may have, and how many sources each rule may list, are set by the administrator under Settings > Server. Whether a node can enforce rules at all depends on its Wings configuration.
