Exposing Wings in a Homelab
A node at home sits behind a router that hands out private addresses. Nothing outside your network can reach it until you open a path in, and the path you pick decides how much of the node ends up on the internet, whether you need a domain, and where the certificate goes. This page walks through the three options.
What Needs to Reach the Node
Four kinds of traffic arrive at a Wings node, and an HTTP reverse proxy only carries the first two:
| Who connects | What for | Default port | Carried by a reverse proxy? |
|---|---|---|---|
| The Panel | Wings API: power actions, installs, backups, file operations | 8080 TCP | Yes |
| Your users' browsers | Console, live statistics, uploads and downloads (WebSockets) | 8080 TCP | Yes |
| SFTP clients | File access over SFTP | 2022 TCP | No |
| Players | The game servers' allocations | Per server, TCP and UDP | No |
Player and SFTP ports are forwarded on the router no matter which method you choose. The methods below differ in how the first two rows get in.
Prerequisites
- A working Calagopus Panel. It can run at home on the same network as Wings, or elsewhere; the second case is called out where it matters.
- A working Wings node that the Panel can already reach. Two machines on the same LAN reach each other on their LAN addresses; a Panel hosted elsewhere needs one of the methods below first.
- Admin access to your router to forward ports.
- A domain name, or a dynamic DNS name if your home IP changes. Optional for port forwarding, needed for anything with a certificate.
Which Method
| Reverse proxy | Reverse proxy + Wings Proxy Mode | Port forwarding | |
|---|---|---|---|
| Ports opened on the router for Wings | 80, 443 | None for Wings (the Panel's 443 covers it) | 8080 |
| Domain name | Required | Required for the Panel | Optional |
| Certificate | On the proxy | On the Panel's proxy only | On Wings itself, or none |
| Wings exposed to the internet | Behind the proxy | Not at all | Directly |
| Fits best when | The node has a public hostname | Panel and Wings are on the same home network | You want the least setup and accept the trade-offs |
A reverse proxy runs on the node (or another machine on your network) and answers on ports 80 and 443. It terminates HTTPS and forwards to Wings on 8080. Wings is never reachable from the internet on its own port.
| Pros | Cons |
|---|---|
| Certificate lives in one place and renews with the proxy | One more service to configure and keep running |
| Wings is only reachable through the proxy | Needs a domain name |
| Several services can share ports 80 and 443 on the same public IP | Adds a hop, so slightly more latency on the console |
SFTP does not go through it; forward 2022 separately or use it on the LAN only |
1. Forward ports 80 and 443 on your router to the machine that runs the proxy. Port 80 is what Let's Encrypt uses to issue the certificate; port 443 carries the traffic.
2. Set up the proxy and trust it in Wings. Follow Putting Wings behind a reverse proxy. It covers the configuration for Nginx, Apache, Caddy, Traefik and Nginx Proxy Manager, closing Wings' own port, and api.trusted_proxies, which Wings needs so it sees your users' real addresses instead of the proxy's.

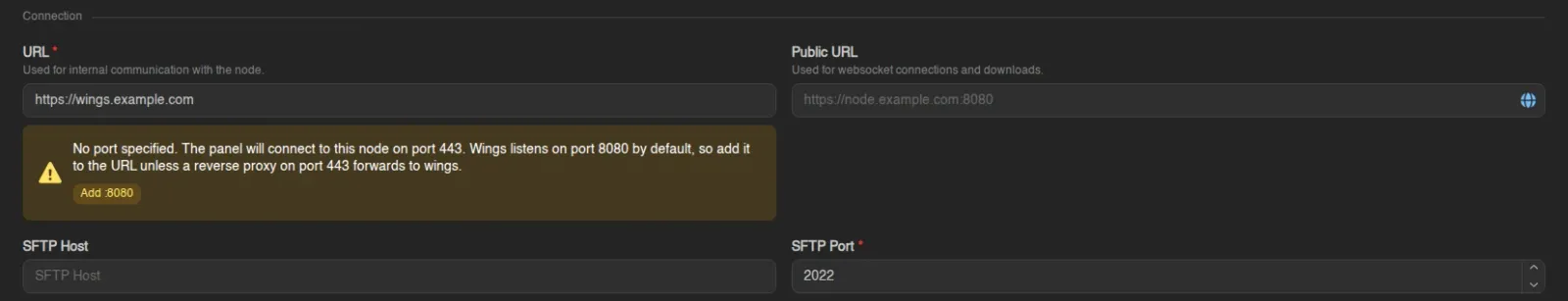

3. Point the node at the proxy. In Admin → Nodes → (your node) → General, set URL to the proxy's address without a port, for example https://wings.example.com. The form warns that no port was given and offers to add :8080. Ignore that here: the proxy listens on 443, and :8080 would go around it. Leave Public URL empty so browsers use the same address.
4. Verify. Open the node's Configuration tab and click Verify Connection. Backend to Wings proves the Panel reaches the node through the proxy; Frontend to Wings proves your browser does, which the console and file manager depend on.
Game Server and SFTP Ports
Whichever method you chose, players still connect to the node directly. Forward each port range you hand out as allocations on the router, TCP and UDP as the game requires. Create the allocations with the node's LAN IP and set the IP Alias to your public hostname, so users see an address they can actually connect to.
SFTP on port 2022 follows the same rule. Forward it if users need SFTP from outside, and set the node's SFTP Host to the public hostname; on the LAN it works without any of that.
The private network between nodes also bypasses the proxy. Its UDP port has to be forwarded to the node when a homelab node talks to nodes elsewhere.
Troubleshooting
| Symptom | Fix |
|---|---|
| Backend to Wings passes, Frontend to Wings fails | The Panel reaches the node but your browser does not. With port forwarding, this is almost always the mixed-content block described above: the Panel is on https:// and the node on http://. Otherwise check that the hostname resolves publicly and the port is forwarded from outside your network, not only from the LAN. |
| Both checks pass, but the console never connects | The WebSocket upgrade is not getting through. On a reverse proxy, check the Upgrade and Connection headers in the proxy configuration. |
| The node worked yesterday and is unreachable today | Your home IP changed. Use a dynamic DNS name in the node URL instead of the raw address. |
| Users cannot reach their servers | The game ports are not forwarded, or the allocation shows the LAN IP with no alias. See Game Server and SFTP Ports. |
For node problems that aren't about exposure, see Troubleshooting.
