GitHub OAuth Setup

This guide will show you how to setup GitHub OAuth for your Calagopus Panel.

Prerequisites

To setup GitHub OAuth, you only need 2 things:

• A GitHub account
• A Calagopus Panel, cause why would you read this guide if you don't have one??

Downloading required files

To setup GitHub OAuth, you can use the github.yml file to import to Calagopus Panel without having to manually copy the values by yourself.

To download this file, right click on the link below, and save it locally on your computer.

Download github.yml ➚

Import the template config

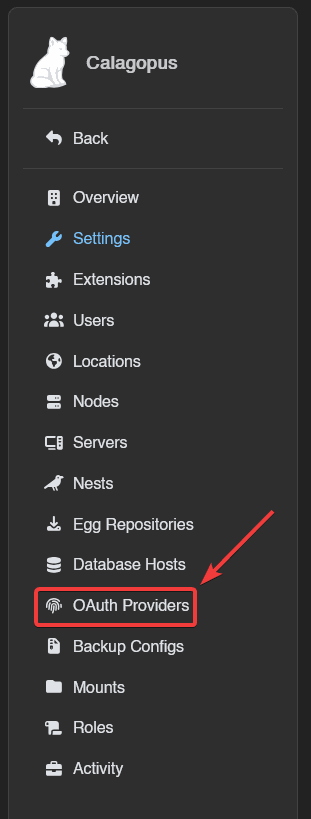

Once github.yml has been downloaded, head to your Calagopus Panel's admin page, and click on OAuth Providers on the side.

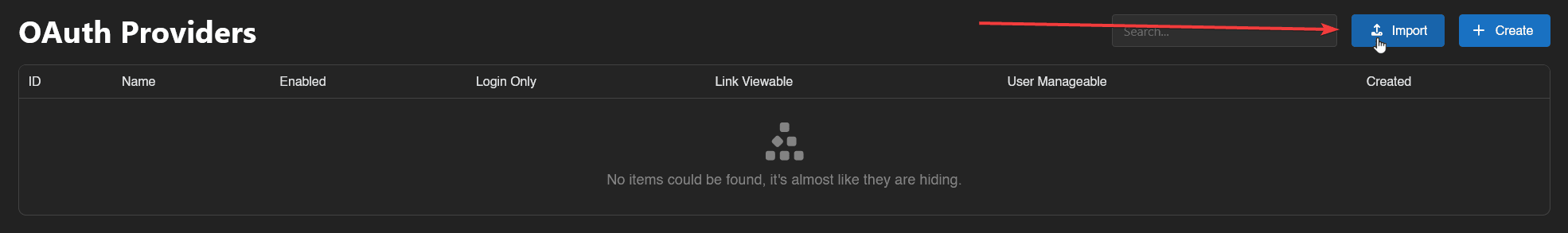

Then, click on the Import button and import the github.yml file.

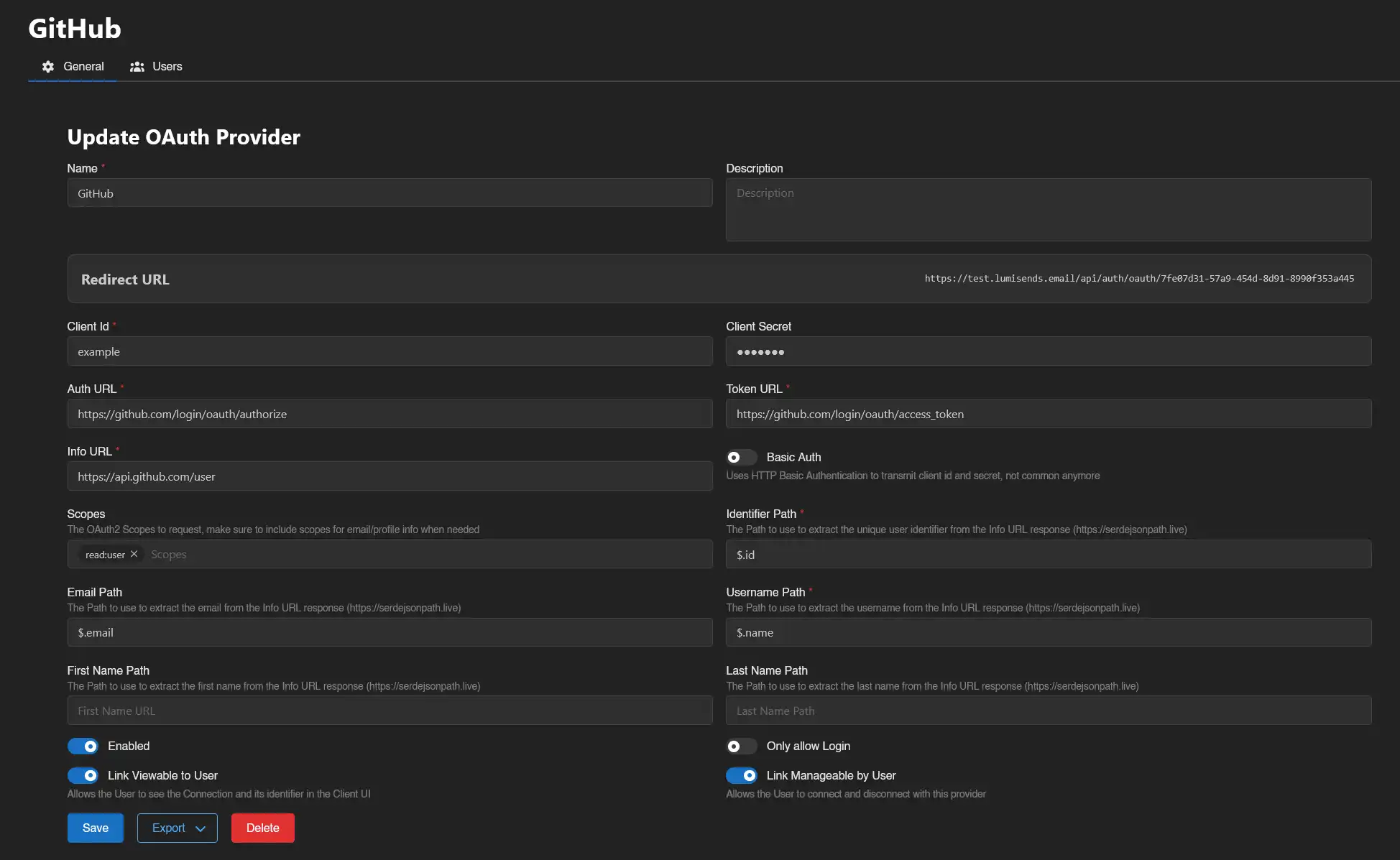

Once imported, click on the newly created GitHub provider's ID and you should arrive to a page similar to this:

Copy the Redirect URL provided by the panel and proceed to the next step.

Create your application

On a new tab, head to this page or head to your GitHub's account/organisation settings, find Developer Settings at the sidebar, and click on OAuth Apps at the Developer Settings's sidebar, and finally click on the New OAuth App button.

Once on the page, fill out theses values:

• Application name: Can be anything you want, will be shown on the login page.
• Homepage URL: Your Calagopus Panel URL, this isn't used by Calagopus.
• Application description: Optional.
• Authorization callback URL: Paste your redirect URL generated by the panel at the previous step.
• Enable Device Flow: Do not tick this checkbox as it will not work with Calagopus.

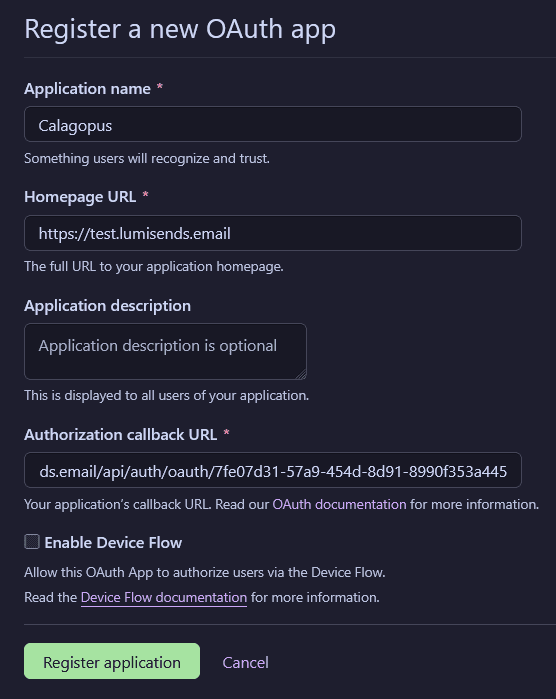

With the required fields filled out, it should look something similar to this: Once done, you can click on the Register Application button, add a logo if you want, and proceed to the next step.

Generate a client secret

To generate a client secret, just click on the Generate a new client secret button, confirm your identity, and copy both your Client ID and your Client secret. You will need thoses for the next step.

Configuring the OAuth Provider

Back to the panel, change the Client ID and the Client secret to the ones GitHub has given you.

On the switches below, choose if you want to enable GitHub OAuth, only allow login, allow the user to view the connection and allow the user to link and unlink their accounts.

It should normally look like this:

Finally, save your changes, and you should be done!

Test the configuration

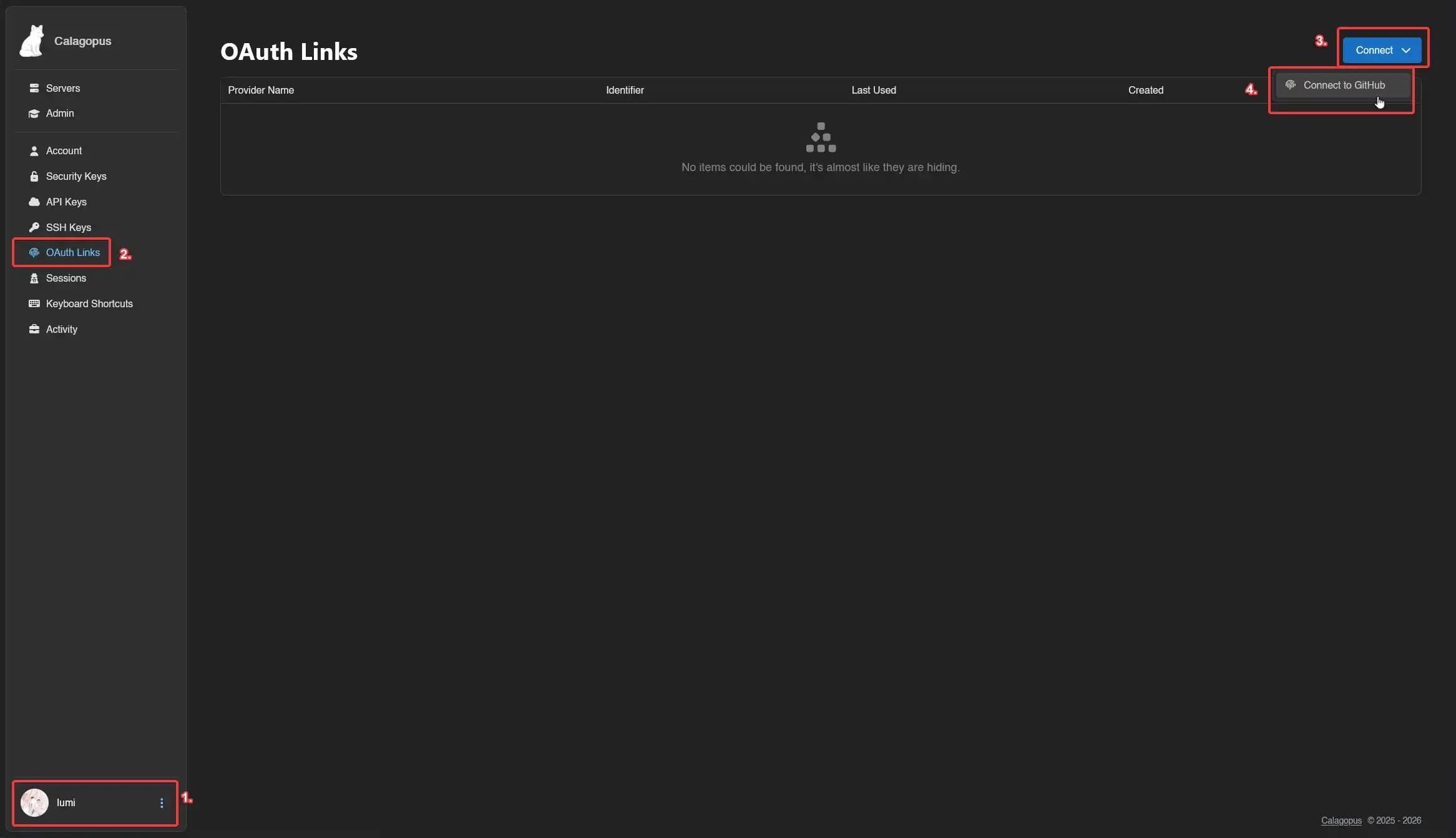

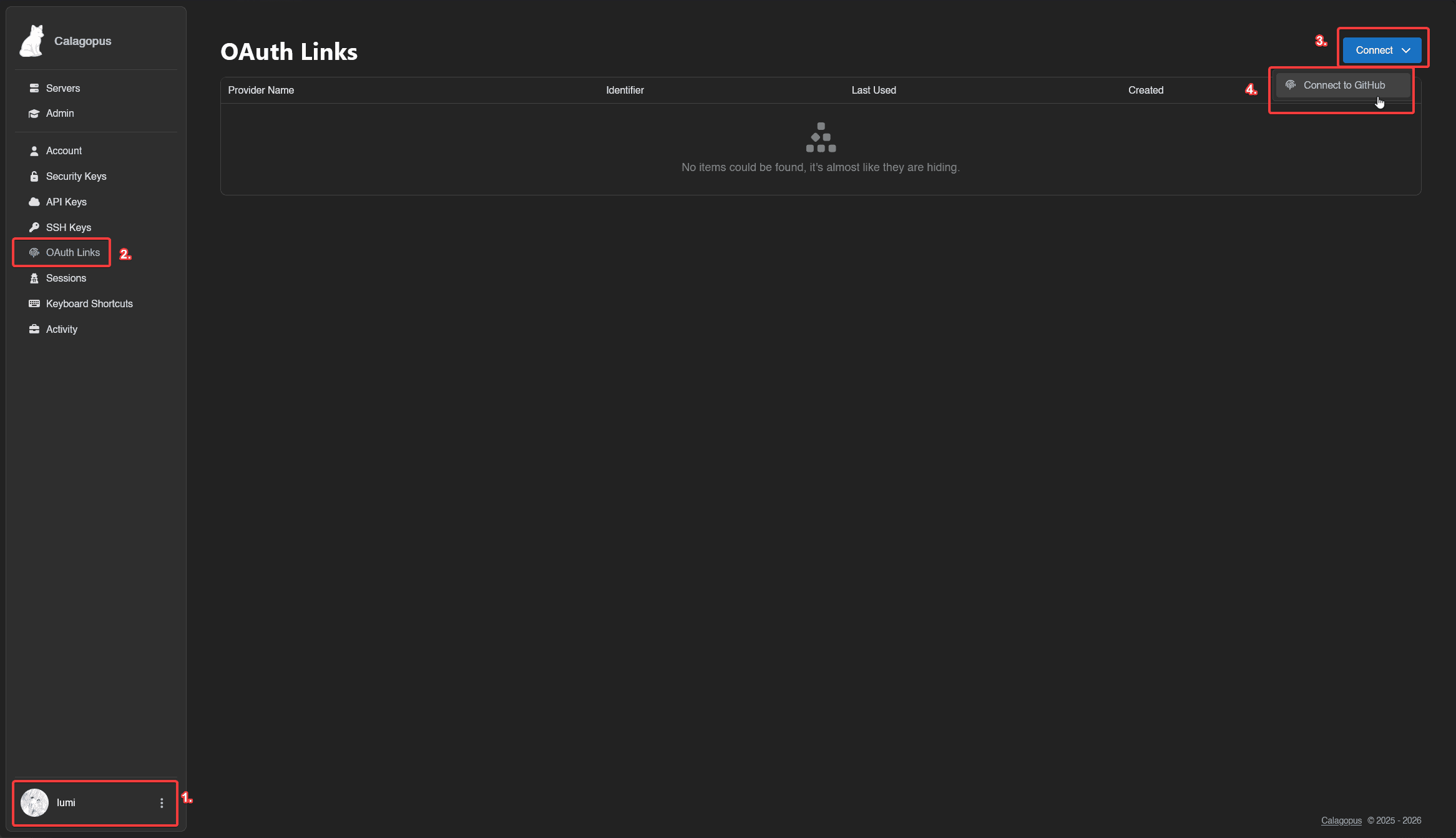

To test your configuration, head into your account settings, click on OAuth Links at the sidebar, and connect to your GitHub account.

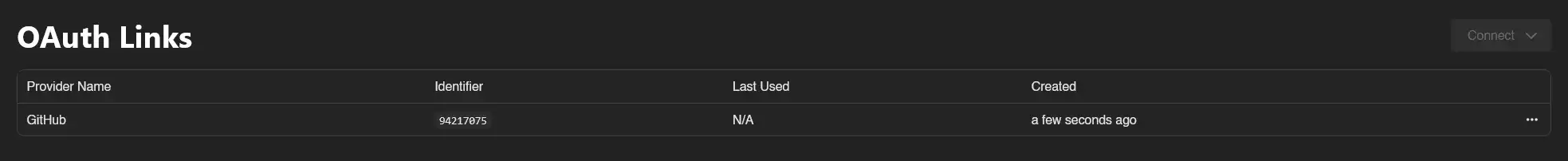

If everything works correctly, you should now be able to see your GitHub account in your list.

Troubleshooting

Error: "Redirect URI Mismatch" or "Invalid Redirect URI"

The authorization callback URL in GitHub doesn't match the one provided by Calagopus Panel.

Solution:

1. Go back to your Calagopus Panel OAuth provider configuration page
2. Copy the exact Redirect URL shown
3. Go to your GitHub OAuth App settings (Account Settings → Developer Settings → OAuth Apps)
4. Click on your application
5. Update the "Authorization callback URL" field to match exactly (including https://, trailing slashes, etc.)
6. Click Update application

Error: "Invalid Client Credentials" or "Bad Credentials"

The Client ID or Client Secret is incorrect or expired.

Solution:

1. Go to your GitHub OAuth App settings
2. Copy your Client ID
3. Click Generate a new client secret
4. Copy the new Client Secret immediately (it won't be shown again)
5. Update both values in your Calagopus Panel OAuth provider configuration
6. Save the changes

OAuth connection doesn't work with "device_flow" error

Device Flow is enabled on your GitHub OAuth App.

Solution:

1. Go to your GitHub OAuth App settings
2. Ensure the Enable Device Flow checkbox is unchecked
3. Click Update application
4. Try the OAuth connection again
